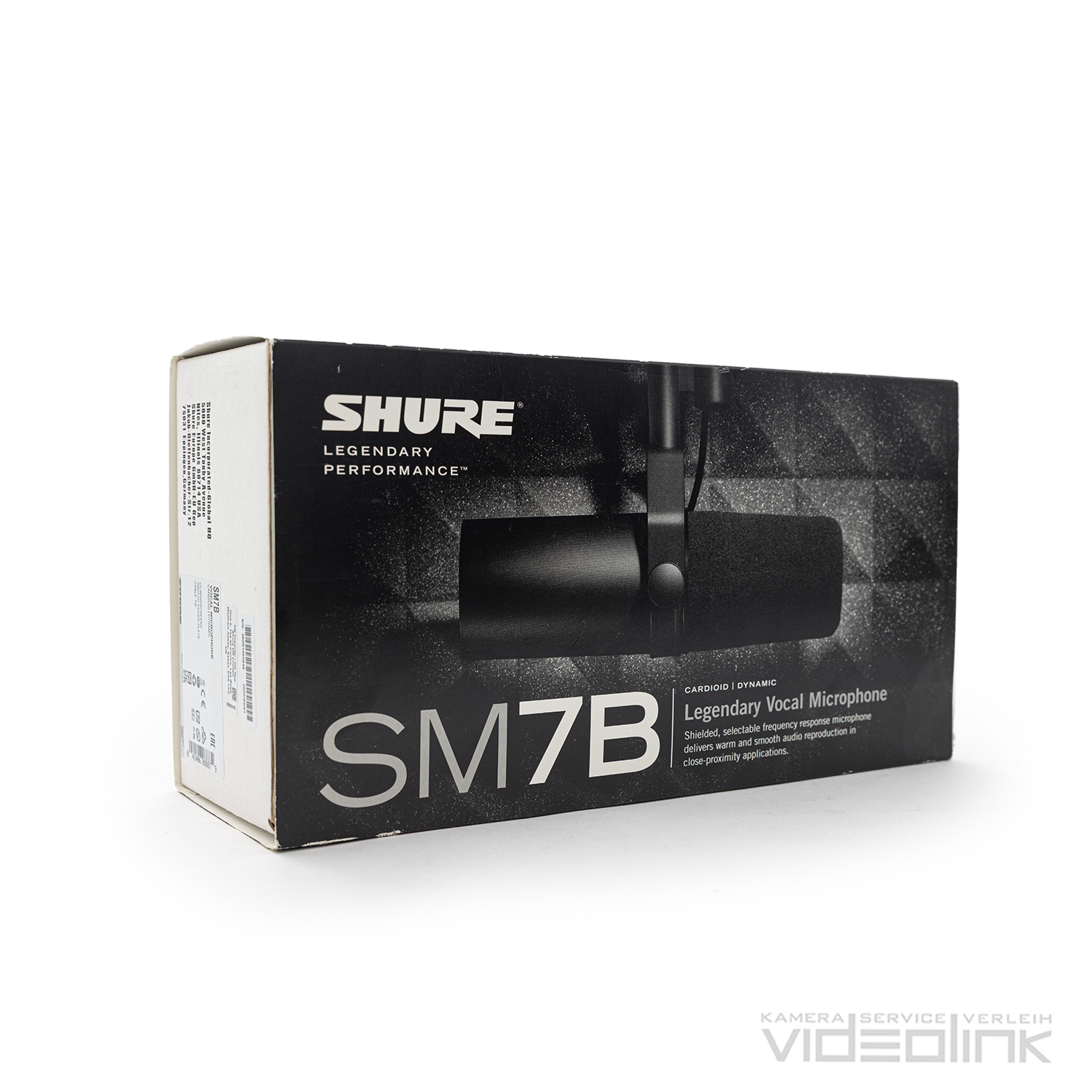

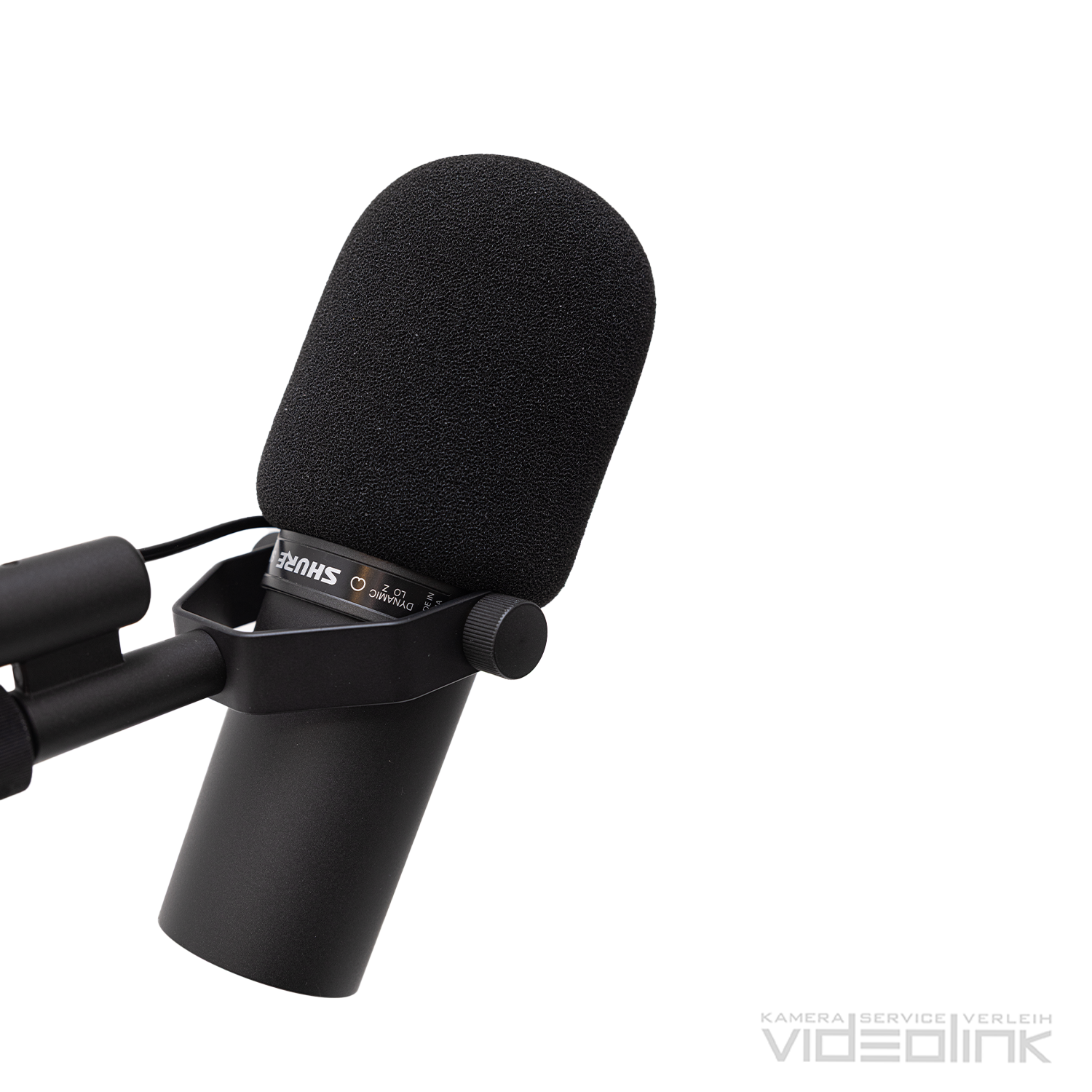

Shure SM7B Microphone

The Shure SM7B is the legendary dynamic microphone for broadcast, podcasting, and studio recording. It delivers warm, clear sound reproduction with a smooth, wide-range frequency response from 50 Hz to 20 kHz and a classic cardioid pattern that reliably rejects unwanted ambient noise. The built-in air suspension shock isolation and internal pop filter minimize handling noise and plosives, while high-quality electromagnetic shielding effectively suppresses hum from studio monitors and other equipment. Switchable bass roll-off and presence boost let you flexibly tailor the tonal character to voice or instrument. For optimal levels, Shure recommends a preamp with at least 60 dB of gain.

#Broadcast#Dynamic Microphone#Microphone#Podcast#Shure#SM7B
r

Technical Facts

Feature Value
Type Dynamic microphone
Polar pattern Cardioid
Frequency response 50 Hz – 20,000 Hz
Impedance 150 Ω (for inputs of 19 – 300 Ω)
Sensitivity –59.0 dBV/Pa (1.12 mV) at 1,000 Hz, open circuit voltage
Recommended preamp gain 60 dB minimum
Tone shaping Switchable bass roll-off and presence boost
Shielding Electromagnetic shielding against hum
Wind protection Standard windscreen and A7WS close-talk windscreen included
Connector XLR (3-pin)
Manufacturer Datasheet
