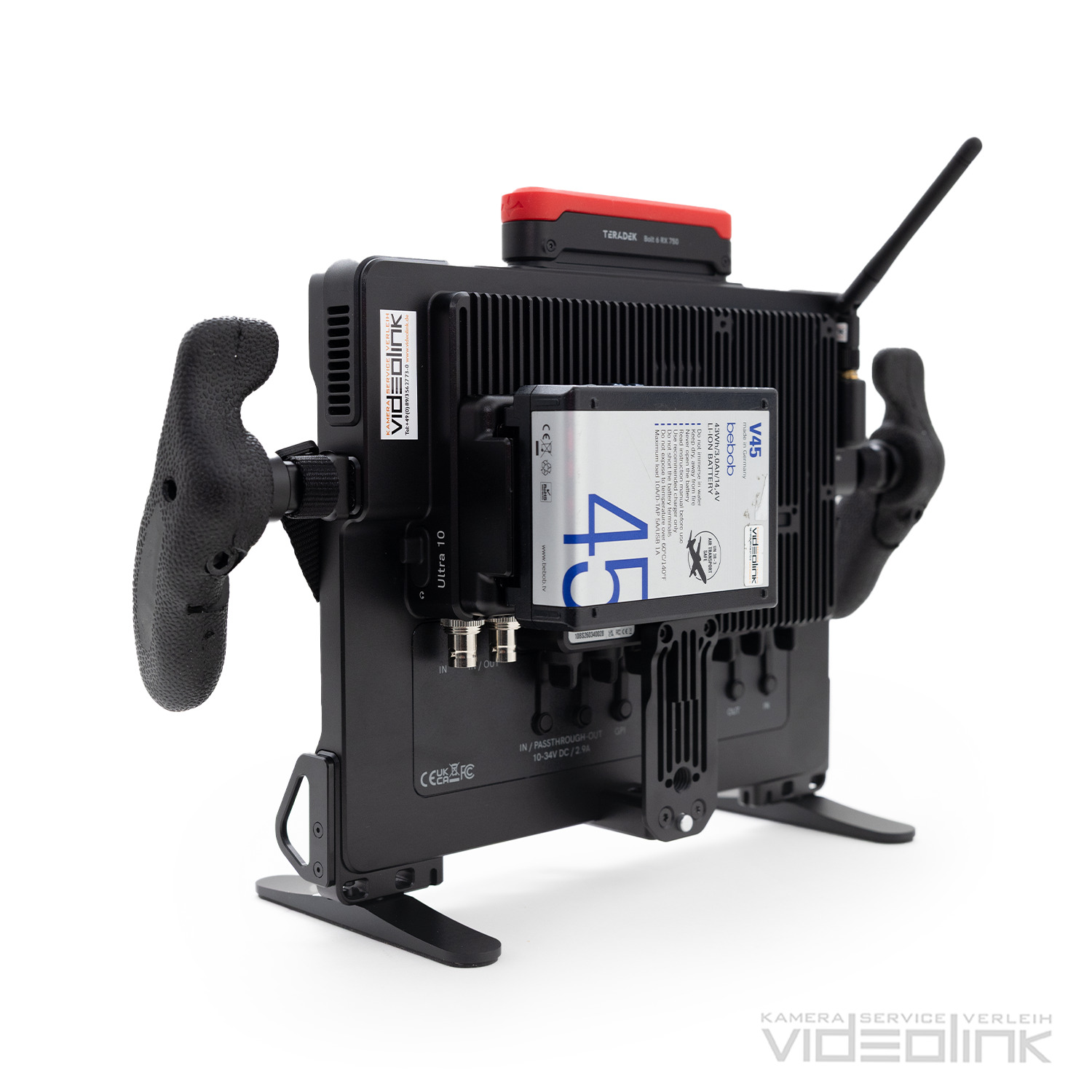

SmallHD Ultra 10 RX 750
The SmallHD Ultra 10 RX750 is a professional 10-inch production monitor with an integrated Teradek Bolt 6 RX wireless receiver and a transmission range of up to 750 ft. The QD-LED display offers a resolution of 1920 × 1200 pixels and brightness levels of up to 2000 nits. The monitor supports 6G-SDI and HDMI 2.0 signals up to 4Kp30 and 4Kp60 respectively. Its durable aluminum housing with IP54 certification is designed for demanding production environments. Features include PageOS, touchscreen control, a multifunction rotary encoder, Ethernet, USB control ports, and integrated 6 GHz wireless video technology.
#10-inch#Bolt6#RX750#SmallHD#Ultra10
Technical Facts
| Display Size | 10 Inch QD-LED Touchscreen |
| Resolution | 1920 × 1200 Pixels |
| Brightness | Up to 2000 Nits |
| Wireless System | Integrated Teradek Bolt 6 RX750 |
| Wireless Range | 750 ft |
| SDI | 1 × 6G-SDI Input, 1 × 6G-SDI In/Out |
| HDMI | HDMI 2.0 Input / Output |
| Supported Signals | Up to 4Kp30 via SDI, up to 4Kp60 via HDMI |
| Controls | Touchscreen, Joystick, Multifunction Rotary Encoder, Function Buttons |
| Protection Rating | IP54 |
| Interfaces | Ethernet, Locking USB, SD Card Slot, 2-Pin Power |
| Weight | Approx. 1497 g |
